The compressor can be used for ventilator or anesthesia machine  at at all levels, clinical first aid and respiratory treatment, and intensive care unit (ICU),operation room,scientific experiments, pneumatic instrumentation and other applications.Meet 9706.1-2007 "Medical Electrical Equipment Part General requirements for safety" of the I Class B equipment requirements.


Product introduction

Salient Feature:

v Auto-start function when central gas system failure.

v Build pressure Pressure safety valve  no exceeds the safe pressure 600kPa,

v Oil-Free Compressor with temperature protection

v Both operation mode at continuous  and intermittent mode

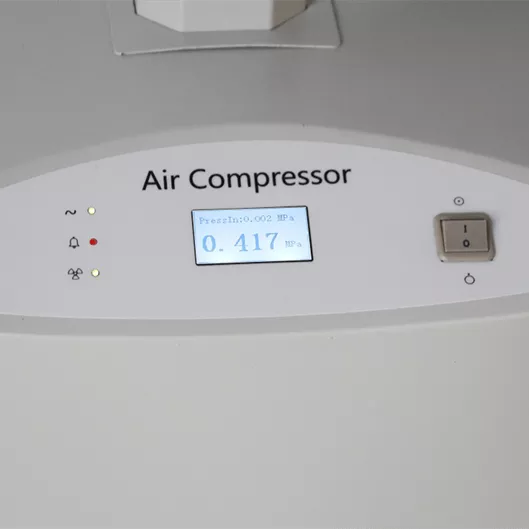

v LCD screen to display output pressure and working time

v With pressure adjustment knob,easy to adjust the needed pressure.

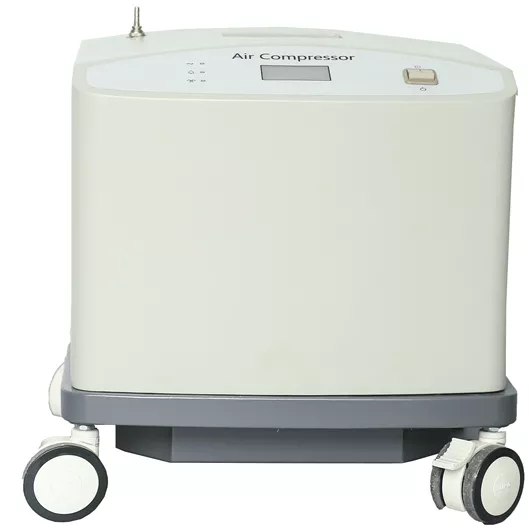

v Compact design and easy to transfer

v Assembled with clean control module, supplying cleaner and safe air to the patients

v Effective sound-absorbing materials, reducing noise lower than 51db

v Build-in temerpature tranmit system,will auto close while tempeprature

       decrease to the certain value

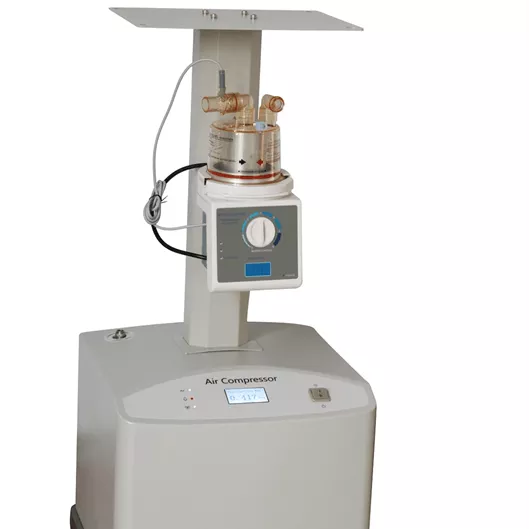

v Match with various brand ventilator or anesthesia machine brand to supply gas

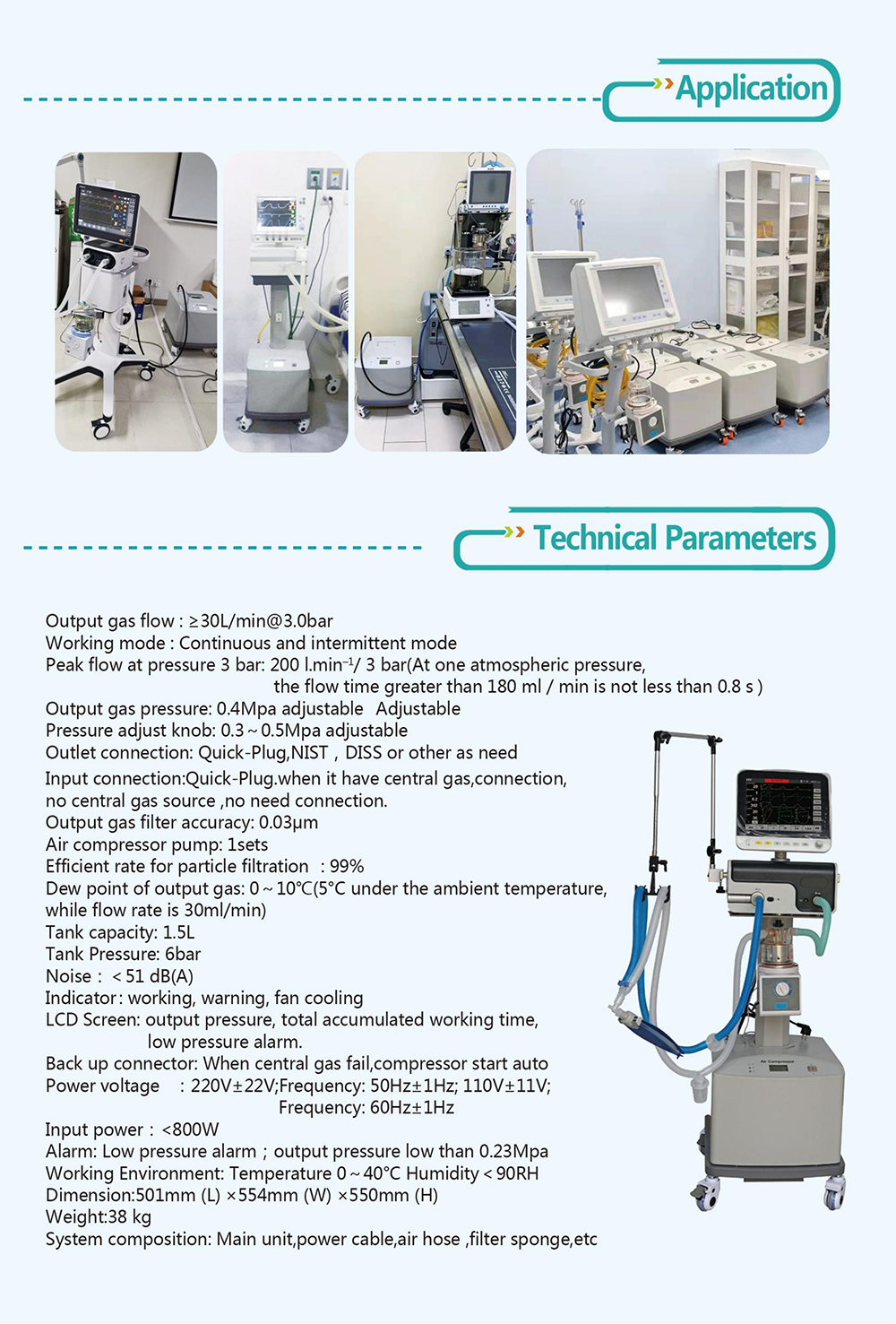

Item

Specification

Remark

Output gas flow

≥30L/[email protected]


Working mode

Continuous  and intermittent mode


Peak flow at pressure 3 bar

200 l.min–1/ 3 bar(At one atmospheric pressure, the flow time greater than 180 ml / min is not less than 0.8 s


Output gas pressure

0.4Mpa

Adjustable

Pressure adjust knob

0.3~0.5Mpa

Outlet connection

Quick-Plug,NIST,DISS or other as need


Input connection

Quick-Plug.when it have central gas,connection,no central gas source ,no need connection.


Output gas filter accuracy

0.03μm





Air compressor pump

1sets


Efficient rate for particle filtration

99%


Dew point of output gas:

0~10℃(5°C under the ambient temperature, while flow rate is 30ml/min)


Tank capacity

1.5L


Tank Pressure

6bar


Noise

<51 dB(A)


Indicator

working, warning, fan cooling


LCD Screen



output pressure, total accumulated working time,low pressure alarm.


Back up connector

When central gas fail,compressor start auto


Power voltage

220V±22V;

 Frequency: 50Hz±1Hz; 110V±11V;

Frequency: 60Hz±1Hz


Input power

<800W


Alarm

Low pressure alarm;output pressure low than 0.23Mpa


Working Environment

Temperature 0~40°C

Humidity<90RH


Dimension:

501mm (L) ×554mm (W) ×550mm (H)


 Weight:

 38 kg




System composition

Main unit,power cable,air pipeline,filter sponge
